| DESCRIPTION: General description:
Semi-automatic machine for incising the paper - model 510 - working width 510 mm.

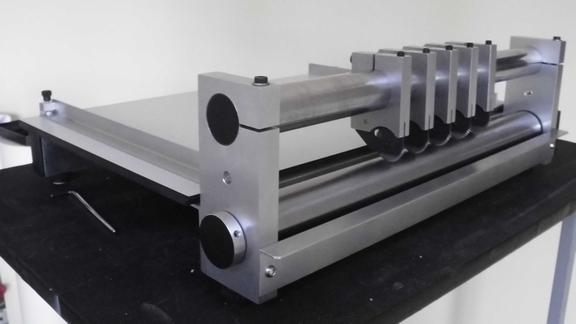

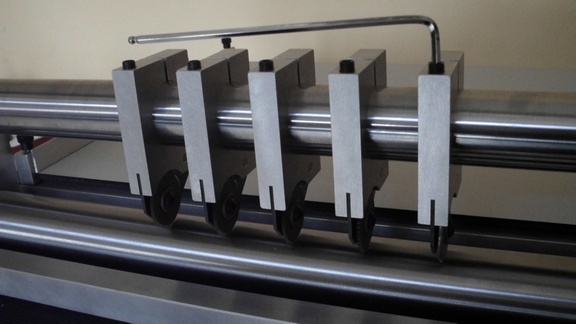

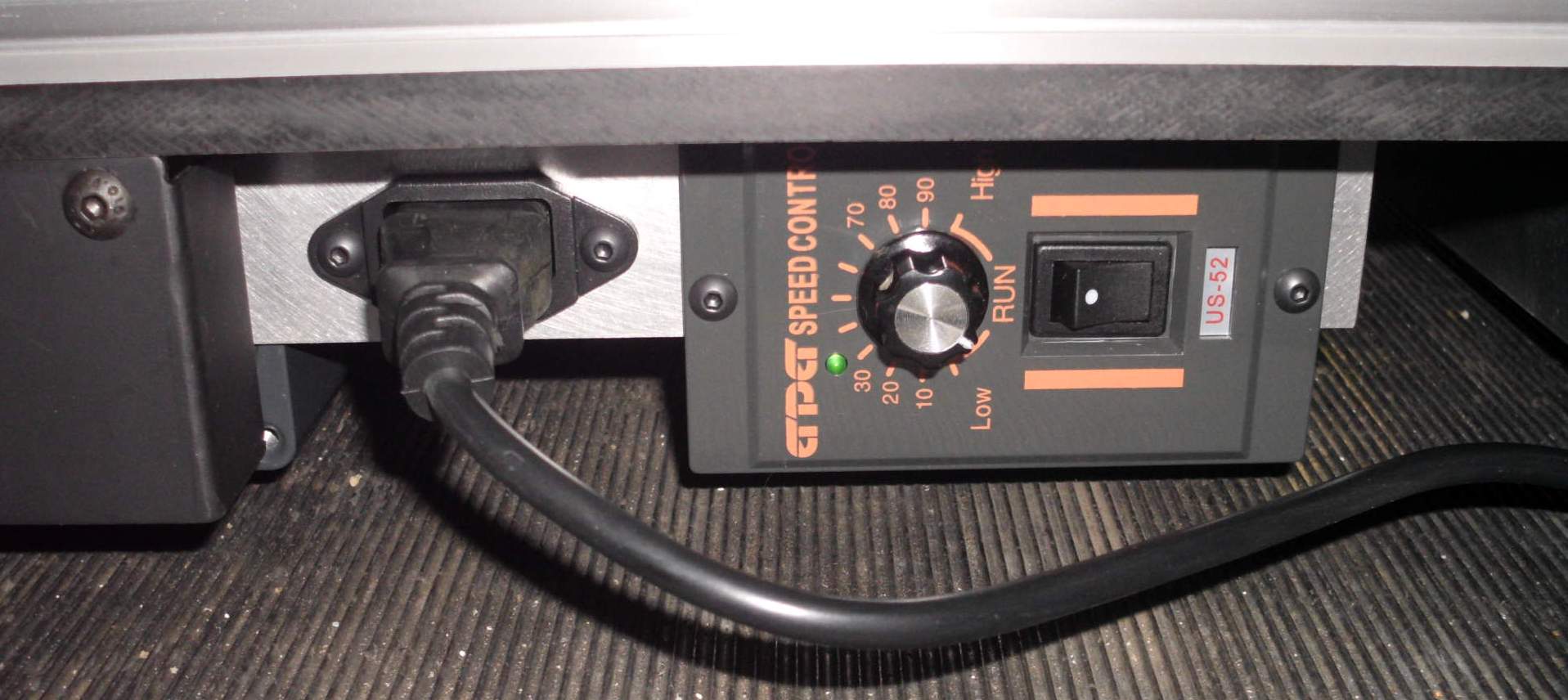

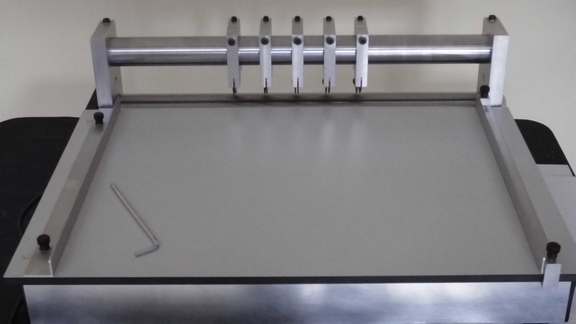

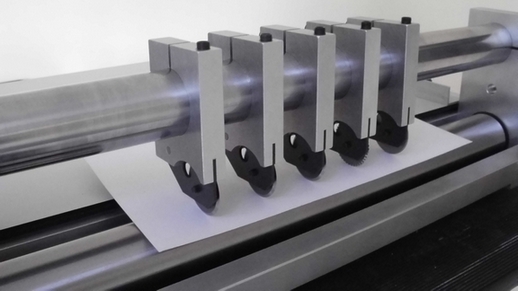

Machinery produced by us successfully be used for incising of self-adhesive materials (e.g. a paper, a foil, an aluminium foil, a fabric and other materials). The machine performs straight incising, so with the use of the machine you may obtain the shapes of stripes or rectangles when incise. The incising line is smooth and without any thickening. The machine is of simple construction. It consists of aluminium frame with two rollers and work table attached. The construction is rigid and firm, which ensures precise processing of the materials. The lower shaft (one of the two shafts) is motor-operated by the motor with fluent regulation of speed. The upper roller, on which the mountings with knives are fastened, is motionless. Additionally, we can expand the machine\'s functions (we can additionally use the machine for creasing and perforating).
Technical data:
Dimensions: L580 x W470 x H195 ( mm )
Product Weight: 18 kg
Shipping Weight: 22 kg
Electrical Requirements:: 240 V, 10 W
Minimum distance between the blades: 12 mm
Advantages:
24 months warranty
small dimensions
simple and reliable construction (no complaints so far – 25 years)

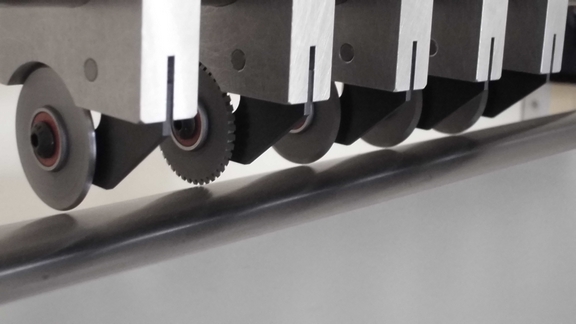

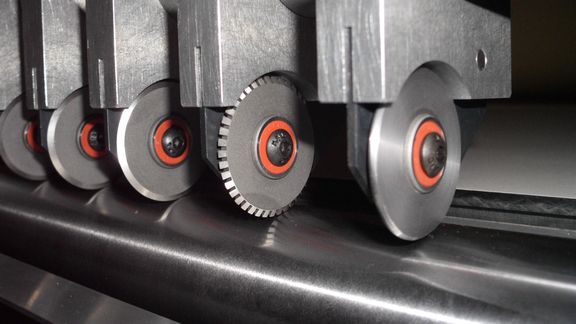

great durability of knives (circular blades)
rectilinear holding of the sheet
easy servicing
the possibility to score outer and bottom sides of the sefl-adhesive materials.
|
